Heavy warehouse storage shelf beam type through type drive in type shelf three-dimensional gravity type shelf
Time:2022/2/10

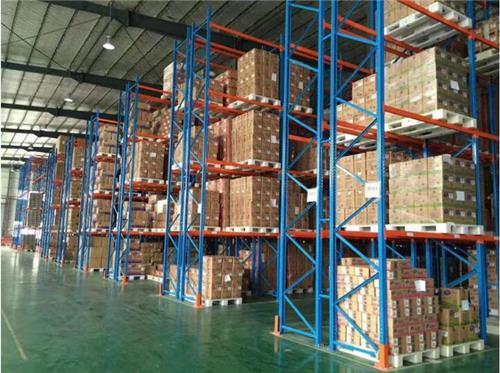

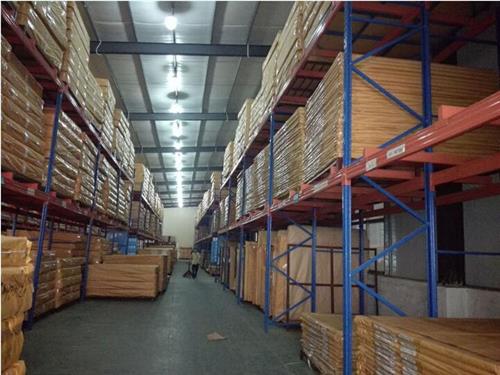

Crossbeam shelf is a professional warehouse shelf for the purpose of accessing pallet goods. The crossbeam shelf is composed of column (column) and crossbeam. The crossbeam shelf structure is simple and reliable. It has the characteristics of large load-bearing, high height, wide adaptability, mechanical access and high selection efficiency, but the space utilization rate is general.




Structure




Column piece: the cross beam shelf is composed of two columns, cross brace and diagonal brace connected by nylon self-locking bolts. The combined structure can effectively prevent the shelf instability caused by the loosening of bolts. The column is punched with double rows of rhombic holes, and the hole pitch is 75mm or 50mm. Therefore, the cross beam hanging on the column can be adjusted freely up and down in 75mm units.

Crossbeam: the crossbeam shelf is welded by two column clamps and crossbeam rods. The crossbeam is welded by two special type holding welding beams to double the thickness of the upper and lower parts of the crossbeam. According to the steel structure design theory, this structure makes full use of the load-resistant capacity of the material and has the characteristics of light weight, strong bearing capacity and low cost.




Characteristic advantage





1. The structure is simple and reliable, which can be adjusted and combined arbitrarily, and the warehousing is not limited by the sequence of items. It is widely used in the storage mode of pallet storage and forklift access.

2. The column piece is formed by connecting the column, cross brace and diagonal brace with bolts. The column piece and C-type holding welding beam are inserted to form a shelf frame, which is fixed with pins, and the structure is simple and reliable. Each layer can be freely adjusted up and down in 75mm or 50mm steps.

3. The cross beam shelf has the characteristics of large moment of inertia, strong layer load capacity and strong impact resistance. The load of each layer can reach 5000kg / layer under the relative design.

4. It can be molded very large. Mold shelves, attic shelves, three-dimensional warehouse shelves, etc. can be built on the basis of tray shelves. It can also be made into special oil barrel shelves, etc.

5. The beam shelf can effectively improve the storage height of the warehouse and improve the space utilization rate of the warehouse. Suitable for storage of various types of goods.

6. Appearance, prevent forklift collision, and add column foot protection and anti-collision bar. For the purpose of layer loading, the beam shelf, laminate, mesh span beam and other auxiliary facilities can also be arranged on the beam.

7. The utility model has the advantages of low cost, convenient installation and operation, easy location finding, and is suitable for handling tools.

8. Crossbeam shelves can also be equipped with laminates, which can be steel plate, dense ammonia plate or grid. In order to use trays of different sizes.
